CASE

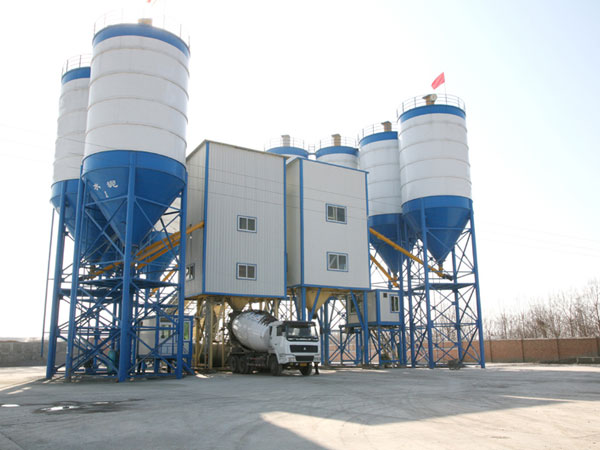

Double HZS120 Commercial Concrete Batching Plant Built in Kazakhstan
May 17,2014
Features of production line:
1.high efficiency and output capacity
2.widely used
3.can produce various concrete
| Model of entire plant | HZS120 |
| Maximum productivity m3 /h | 120 |
| Standard discharging height (m) | 4 |
| Operation cycle time (s) | 60 |
| Appearance size (length*width*height) (mm) | 60120×13700×18704 |
| Total installed capacity (KW) | 210 |
| Model of mixer | JS2000 |
| Model of compounding machine | PLD3200 |
| Model of air compressor | 1.8-7 |
| Rated exhaust quantity (m3 /min) | 1.67 |
| Rated exhaust pressure (MPa) | 0.8 |
| Electric motor power (KW) | 11 |
| Sand and stone measure precision (KG) | ±1% |
| Cement measure precision (KG) | ±1% |
| Water measure precision (KG) | ±1% |
| Additives measure precision (KG) | ±1% |
