CASE

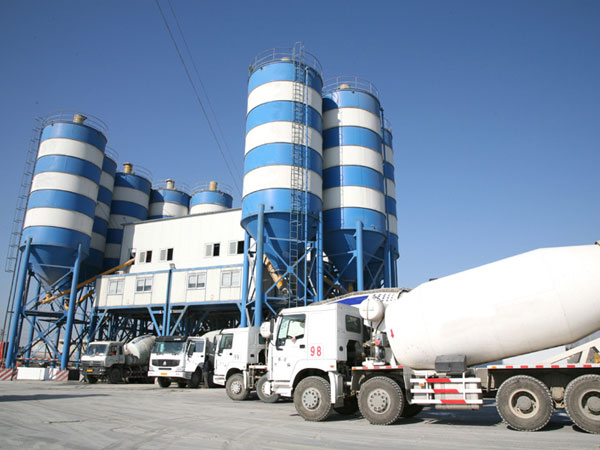

Double HZS120 Commercial Concrete Batching Plant Built in Ulan Bator, Mongolia

May 17,2014



Features of production line:
1. can produce various concrete
2. used newest design concept
3.high efficiency and measure precision



Model of entire plant HZS120
Maximum productivity m3 /h 120
Standard discharging height (m) 4
Operation cycle time (s) 60
Appearance size (length*width*height) (mm) 60120×13700×18704
Total installed capacity (KW) 210
Model of mixer JS2000
Model of compounding machine PLD3200
Model of air compressor 1.8-7
Rated exhaust quantity (m3 /min) 1.67
Rated exhaust pressure (MPa) 0.8
Electric motor power (KW) 11
Sand and stone measure precision (KG) ±1%
Cement measure precision (KG) ±1%
Water measure precision (KG) ±1%
Additives measure precision (KG) ±1%
