Concrete Batching Plant
Project Concrete Batching Plant
  • Project Concrete Batching Plant
  • batching plant
  • stationary concrete batching plant

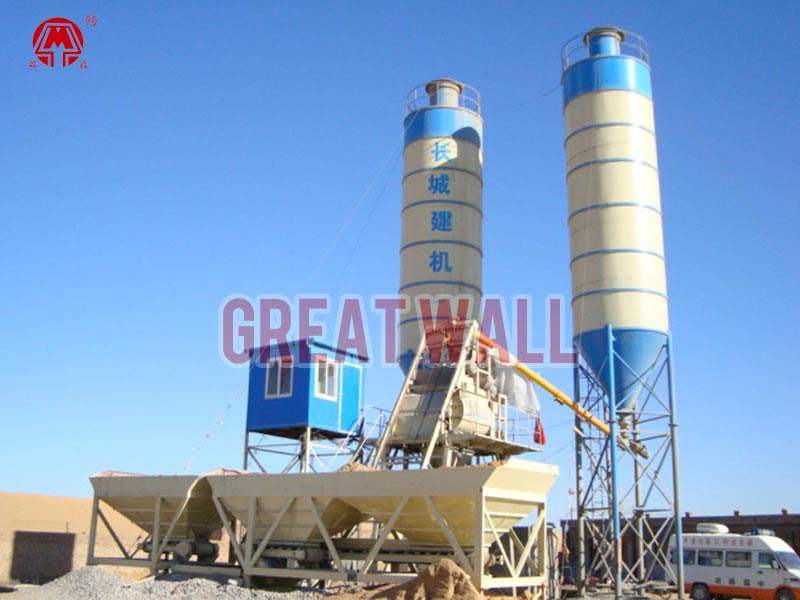

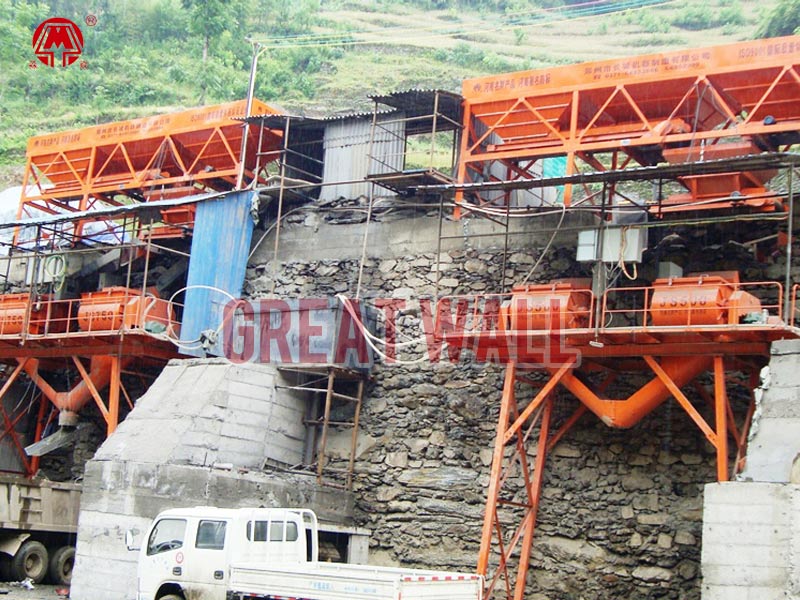

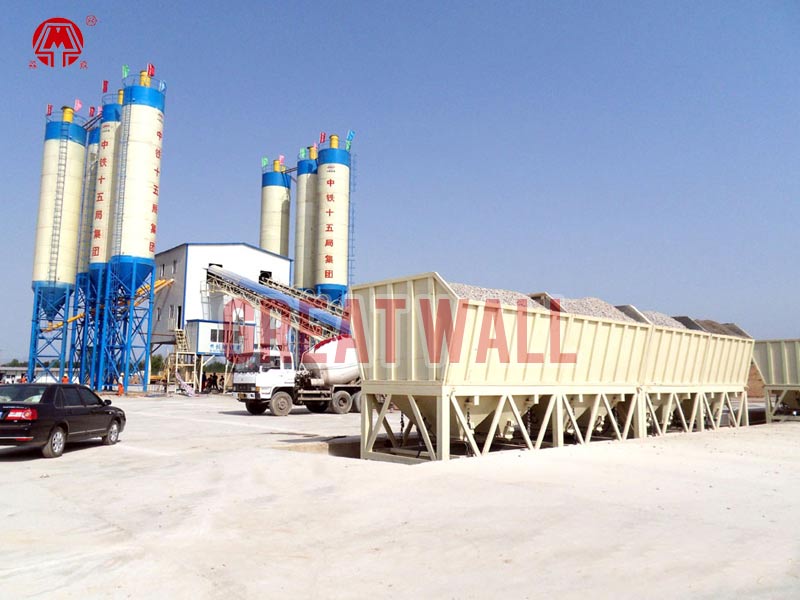

Project Concrete Batching Plant

  • Model: HZS commercial series
  • Productivity: 15—240m3/h
  • Mixer: JS series concrete mixer
  • Batching Machine: PLD series batching machine
  • Control System: Integration Industry Computer Control or PLC+PC Control System
  • Standard: GB/T 10171-2005
(※ Click this button to inquiry)
Share with :
  • Introduction
  • Overview
  • Technical Data
  • Inquiry
■ Overview

Introduction:
We, Zhengzhou Great Wall Machinery Manufacture Co., Ltd, our project concrete batching plant is special mixing equipment designed and manufactured for various projects, and with following features:
1) High Adaptability to Meet Different Concrete Strength Requirements of The Project
2) High Mixing Quality, Low Failure Rate and High Stability, and Long Life Span.
3) Investment Cost is Controllable. We Have Different Configurations for Your Choice and Can Uniquely Design as per Practical Requirement.
4) Space Saving, the Plant can be Installed according to Real Site Situations.
5) Modular Design, Easy to Remove, the Components Connection Bolts are easy to Assemble and Dismantle.

Applicable Projects
:
Buildings, roads, bridges, high way roads, docks, airport, metro, government project, water projects, hydropower station, and can be used for producing precast concrete for large-span prestressed component and high durability requirement prestressed component etc.

Part of Configurations Features:
Mixing System:
1) Our JS Series mixer is with 9 technical patents, it is with strong mixing power, high mixing evenness and high productivity.
2) The mixing blade and liner is made by high wearing-resistance chromium-manganese alloy.
3) Both the lubrication system and main shaft driving system are of international advanced technology.
4) The hydraulic discharging door angle is adjustable.
5) The shaft end sealing system is by multi-sealing structure effectively prevents leakage and guarantees the continuous long running of whole mixing system.
6) Motors and speed reducers are of China Famous Brand.

The Batching and Feeding System:
1) The PLD series batching machine is with choice of accumulated weighing or pneumatic independent weighing system.
2) The batching aggregates can be 2-5 types as per the unique needs of customers.
3) The sensors for the weighing system are of China Famous Brand with assured high weighing accuracy and stability.
4) The feeding system can be hopper feeder or closed belt type to meet the needs of both project cost and efficiency.

Weighing System:
1) Apart the standard water, cement and additive weighing system, we can other weighing system as per unique requirement of Buyer.
2) The sensors for the weighing system are of China Famous Brand with assured high weighing accuracy and stability.
3) The pneumatic butterfly valve is full aluminum for high performance and forever non-corrosion.

The Centralized Control System:
We use the international advanced full auto control models of integration industry computer or full auto SIMENS PLC+PC model. For small project or the project that has comparatively fixed concrete formula, it can use PLC semi-auto control system or manual control system to hugely save cost.

OUR TWO PROMISES:
1) We are the only CHINA WELL KNOWN TRADEMARK enterprise in Xingyang Henan, all our equipments is strictly designed and manufactured as per China National Standard Requirement, and high guaranteed on terms of advanced technology, deep technology maturity and promised output capacity.
2) We provide turn-key project solution with all needed equipment and parts (cables and wires are all included). We solemnly promise that, apart from the power and materials, the buyers needs no extra investment for any other parts to run our plant.

■ Technical Data

Detail Parameters Table:

  HZS25 HZS35 HZS50 HZS60 HZS75 HZS90 HZS120 HZS180
Theory Productivity(m3/h) 25 35 50 60 75 90 120 180
Standard Discharging Height(m) 3.8 3.8 4.2 4.0 4.2 4.0 4.2 4.2
Mix Cycle Time(s) 72 72 60 60 60 60 60 60
Total Power(KW) 52 75 105 115 132 195 220 275
Mixer Model JS500 JS750 JS1000A JS1000B JS1500A JS1500B JS2000 JS3000
Batching Machine Model PLD800 PLD1200 PLD1600A PLD1600 pneumatic PLD2400 pneumatic PLD2400 pneumatic PLD3200 pneumatic PLD4800 pneumatic
Feeding Method Hopper Hopper Hopper Belt Hopper Belt Belt Belt
Weighing Accuracy Aggregate ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2
Cement and Ash Coal ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1
Water ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1
Additive ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1
MOQ 1 set 1 set 1 set 1 set 1 set 1 set 1 set 1 set
Delivery Time 7days 7days 10days 14days 12days 15days 20days 20days
Delivery Port Qingdao or Tianjin
