Ladder Type Concrete Mixer

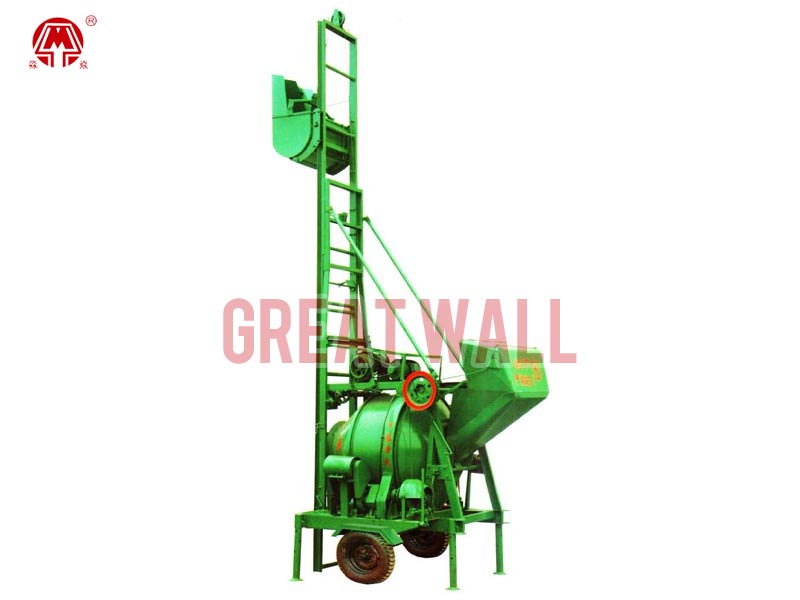

JZC250T Ladder-type Concrete Mixer

JZC250T is based on JZC250, adding lifting and self-dumping installation, It has functions of mixing and lifting . It can make concrete in the lifting hopper to different floors through different ladder chassis , hoist and sliding guide, thus saving working time and labor and improving working efficiency.



The main structure finished lifting & self-dumping:10#channel steel ladder chassis, rest ,lifting hoist ,lifting hopper and sliding , etc. And other spare parts adding safety factor: cross arm reinforced pole , joint bolt ,tipper hook and take-up hopper, etc.10#channel steel ladder chassis consists of roof chassis’, under-frame and intermediate chassis .Every parts ladder chassis’s width is same ,this machine matches one parts top ladder chassis ,the total length is 17m. Round pipe’s core drill one round orifice at the both ends of ladder chassis for putting on joint bolt .There is symmetrical mobile dump hook shoot nail and cross arm reinforced pole shoot nail welded on the top of roof chassis. Planks connected ladder and flash board is made throng several processed. This shows this model’s good quality ,high accordant standard and safe.

JZC series Concrete Mixer Main Technical Parameters:



ITEM	JZC250T
Discharging Volume（L）	250
Charging Volume（L）	320
Productivity（m3∕h）	6-8
Maximum Height of Climb	17m
Mixing Drum Rotational Speed（r∕min）	17
Maximum Size Of Aggregate（mm）	60
Accuracy of Water Supply	≤2%
Power Source	Electric/Diesel Engine
Mixing Motor（Kw）	4
Water Pump Motor（Kw)	0.55
Type Specification	6.50-16
Maximum Towing Speed（km∕h）	20
