Stabilized Soil Mixing Equipment

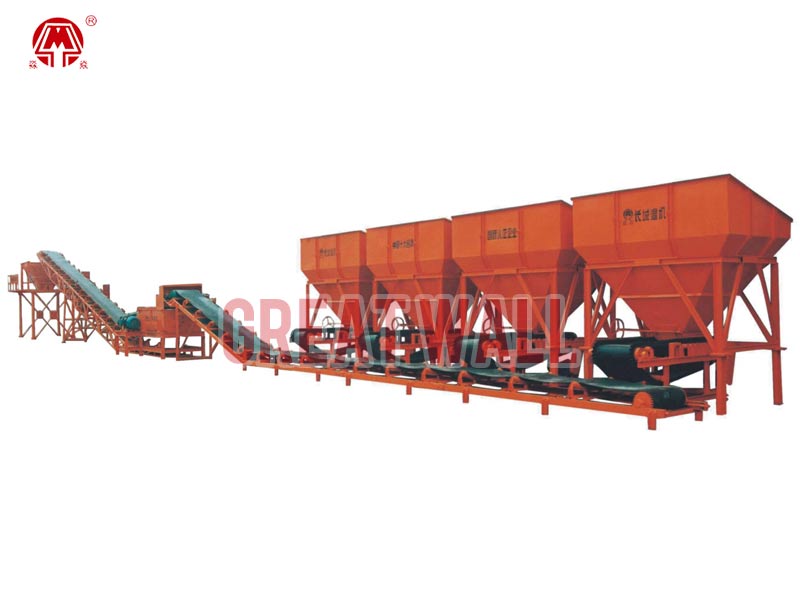

Stabilized Soil Mixing Station
- Model: WBZ series
- Capacity: 200-600t/h
- Size Of Aggregate: ≤60
- Accuracy Of Aggregate Measurement: ＜±2%
- Accuracy Of Water Measurement: ＜±1%-±2%
- Accuracy Of Cement Measurement: ＜±1%
(※ Click this button to inquiry)
- Concrete Batching Plant
- Commercial Concrete Batching Plant
- Ready Mix Concrete Plant
- Project Concrete Batching Plant
- Belt Conveyor Concrete Batching Plant
- Concrete Mixer Plant
- Precast Concrete Plant
- Mini Concrete Batching Plant
- Concrete Mixing Plant
- HZS180 Concrete Mixing Plant
- HZS120 Concrete Mixing Plant
- HZS90 Concrete Mixing Plant
- HZS60 Concrete Mixing Plant
- HZS50 Concrete Mixing Plant
- HZS35 Concrete Mixing Plant
- HZS25 Concrete Mixing Plant
- HZS75 Concrete Mixing Plant
- JS Concrete Mixer
- JS1000 Concrete Mixer
- JS750 Concrete Mixer
- JS500 Concrete Mixer
- JS1500 Concrete Mixer
- JS2000 Concrete Mixer
- JS3000 Concrete Mixer
- SICOMA Concrete Machinery
- SICOMA Concrete Mixer MAO Standard Series
- SICOMA Concrete Mixer MEO Economical Series
- SICOMA Concrete Mixer MSO Mini Series
- SICOMA Planetary Concrete Mixer
- SICOMA Cement Screw Conveyor
- SICOMA Butterfly Valve
- SICOMA Dust Collector
WBZ500/400/300 Stabilized soil mixing station:
WBZ series stabilized soil mixing station are learned on basis of summarizing the domestic and foreign advanced mixing technology innovation to develop a new generation of stabilized soil mixing plant and have obtained two international technology patents by Zhengzhou Great Wall machine manufacture co.,LTD.
WBZ series stabilized soil mixing station is the machine type of detachable combination and double shaft compulsory continuous stirring to mix for gravel stabilized soil ,lime soil and stabilized soil. This series machine is suitable for highway,Ⅰhighway,Ⅱ grade highway , urban road ,airport and stadium, etc matrical material construction .It is able to use quick lime and hydrated lime(10-15% moisture content),soil ,sand ,fly ash , cement and other raw materials for production of lime soil stable makings ,cement stabilized gravel and concrete base material, etc.
The equipment’s advantages are excellent performance , advanced technology , reasonable structure ,reliable operation, easy to use ,easy maintenance ,high efficiency ,accuracy ratio and uniform stirred up .It is the basic material and ideal equipment for the construction units.
Main Parameters:
| Model/Parameter/Project | WBZ200 | WBZ300 | WBZ400 | WBZ500 | WBZ600 |
| Rated Productivity | 200T/h | 300T/h | 400T/h | 500T/h | 600T/h |
| Size Of Aggregate | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |
| Warehouse Inventory Of Aggregate | 3×4.5m3 | 3×6m3 | 4×6m3 | 4×8m3 | 4×10m3 |
| Warehouse Inventory Of Mixed Material | 6m3 | 6m3 | 6m3 | 6m3 | 6m3 |
| Accuracy Of Aggregate Measurement Scope(kg)/Accuracy | ＜±2% | ＜±2% | ＜±2% | ＜±2% | ＜±2% |
| Accuracy Of Water Measurement Scope(kg)/Accuracy | ＜±1%-±2% | ＜±1%-±2% | ＜±1%-±2% | ＜±1%-±2% | ＜±1%-±2% |
| Accuracy Of Cement Measurement Scope(kg)/Accuracy | ＜±1% | ＜±1% | ＜±1% | ＜±1% | ＜±1% |
| Mixer Speed | 63.2r/min | 63.2r/min | 63.2r/min | 65r/min | 65r/min |
| Total Power | 75kw | 102.7kw | 120.2kw | 155.5kw | 175.5kw |
| Weight | 30000kg | 39000kg | 41000kg | 51000kg | 63000kg |
