Concrete Mixing Plant
50m3/h concrete mixing plant
  • 50m3/h concrete mixing plant

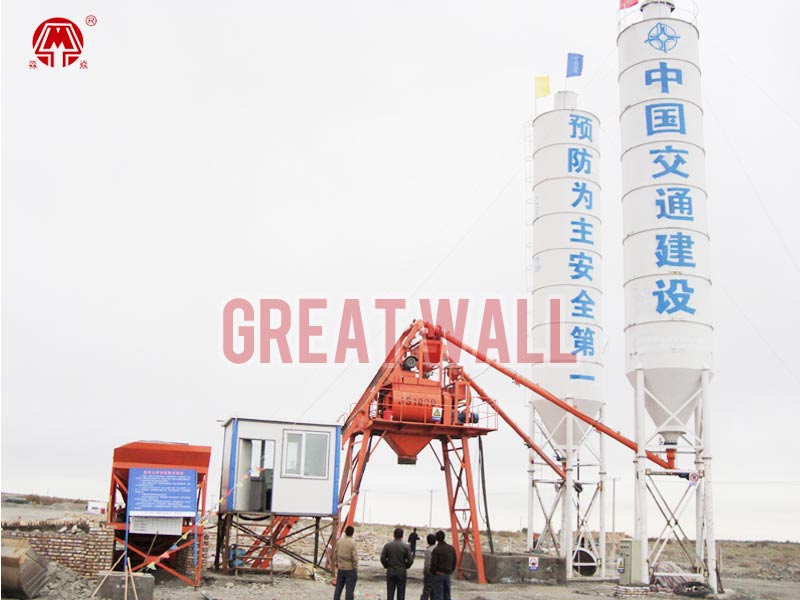

HZS50 Concrete Mixing Plant

  • Capacity: 40m3/h-50m3/h
  • Concrete Mixer: JS1000 Mixer, 4.2m Hydraulic Discharge
  • Batching Machine: PLD1600 Batching Machine
  • Weighing System: Cement; Water; Additive
  • Control System: Full Automatic Centralized Control System
  • Standard: GB/T 10171-2005
(※ Click this button to inquiry)
Share with :
  • Introduction
  • Overview
  • Technical Data
  • Inquiry
■ Overview

Introduction:
We, Zhengzhou Great Wall Machinery Manufacture Co., Ltd, our HZS50 concrete batching plant is forced type high efficiency concrete production equipment. It suits for mixing dry hard, half dry hard, plastic, and other ratios of concrete with features of high production efficiency, high mixing quality, stable and reliable, long lifespan etc.

Part of GREAT WALL 50m3/h Concrete Batching Plant Features
:
1) The Mixing System: the mixer is JS1000A twin shaft forced type which has high mixing evenness for concrete, short mixing time, long lifespan for wearing parts, easy operation and maintenance advantages. Mixer driven is by double motor and double speed reducer. 4.2m discharging height. Adjustable hydraulic discharging door angle. High Wear-Resistant Chromium-Manganese Alloys Plates and Blades. Perfect shaft end sealing system effectively prevents leakage and guarantees the continuous long running of whole mixing system.

2) Batching System: using PLD1600 batching machine. The batching aggregates can be 3-5types. 5m3 Basic Storage Bins Volume,1600L Weighing Bins Volume,Full Capacity, 5.5kw Motor.

3) Feeding System: using hopper feeder, and our anti-block patents technology ensures forever non-block.

4) The digital weighing system is with buffering device, auto compensation function and very high weighing accuracy. The sensors for the weighing system are of China Famous Brand with assured high weighing accuracy and stability.

5) We use the international advanced full auto SIMENS PLC+PC control model with Strong Anti-Interference Ability, High Reliability And Stability and Easy Operation features. It can also use PLC semi-auto control system or manual control system to hugely save cost.

6) All Motors, Speed Reducers, Sensors are of China Famous Brand.

7) 11 National Technical Patents Guarantee Excellent Performance.

8) Modular Design, Space-Saving Integrated Design, Easy Installation and Removal.

9) China Well-known Trademark, Brand Protected by <Paris Convention for the Protection of Industry Property>.

Application:
HZS50 concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, municipal projects,docks, airport, water projects, hydropower station,etc. They can also be used in precast concrete unit factories and used as commercial concrete batching plant to sell high quality concrete to different buyers.

OUR TWO PROMISES:
1) We are the only CHINA WELL KNOWN TRADEMARK enterprise in Xingyang Henan, all our equipments is strictly designed and manufactured as per China National Standard Requirement, and high guaranteed on terms of advanced technology, deep technology maturity and promised output capacity.
2) We provide turn-key project solution with all needed equipment and parts (cables and wires are all included). We solemnly promise that, apart from the power and materials, the buyers needs no extra investment for any other parts to run our plant.

■ Technical Data

Detail Parameters Table:

  HZS50
Theory Productivity(m3/h) 50
Standard Discharging Height(m) 4.2
Mix Cycle Time(s) 60
Measurement(m) 19*14*19
Total Power(KW) 105
Mixer Model JS1000A
Batching Machine Model PLD1600
Belt Width mm 650
Belt Machine Power kW 5.5
Feeding Method Hopper
Weighing Accuracy Aggregate ≤2
Cement and Ash Coal ≤1
Water ≤1
Additive ≤1
Screw Conveyor Model LSY219 Italy Technology
Silo 1×60t+1×100t Detachable Silo
Control System Centralized Control
MOQ 1 set
Delivery Time 10days
Delivery Port Qingdao or Tianjin
