Concrete Plants Accessories
flexible screw convey
  • flexible screw convey

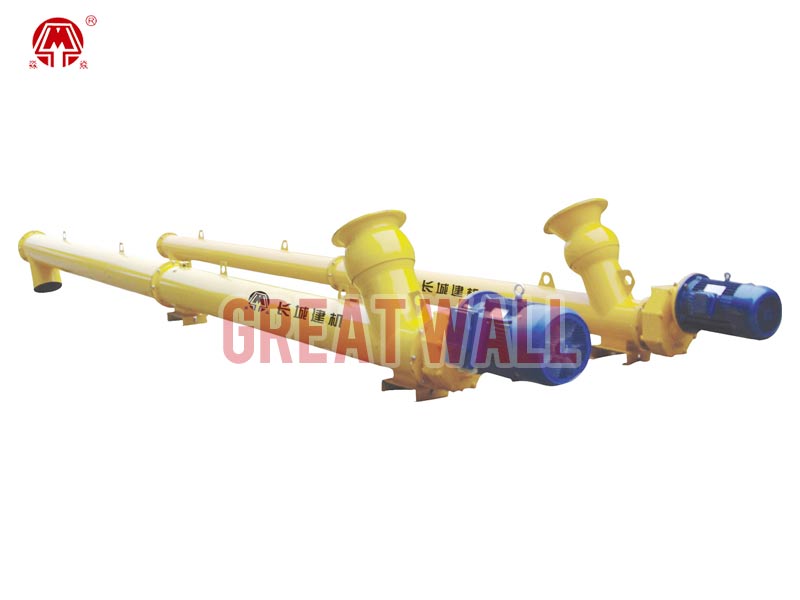

Screw Conveyer

  • Model: LSY
  • Diameter of screw(mm): 160-300
  • Transport length(m): 2.5-9
  • Diameter of housing(mm): Φ194-Φ325
  • Operation angle: ≤20°-45°
  • Transport ability(t/h): 25-75
(※ Click this button to inquiry)
Share with :
  • Introduction
  • Overview
  • Technical Data
  • Inquiry
■ Overview

•  LSY250 series screw conveyer is a new type of transporting equipment, which use rotary screw vane to push material continuously in closed housing with round section.



•  Main characteristics: compact structure, small cross section, light weight, good seal performance, high transport efficiency, flexible technological arrangement, and easy to be installed, dismantled and moved, safe operation. It is applicable to transport various kinds of loose material such as power, granular and small piece material, for example: clay powder, pulverized coal, cement, sand, grain, small piece of coal, cobble and cast iron filings, etc. it is not applicable to transport material with high viscosity, easy to be curdled.



•  Screw conveyer has horizontal, inclined form, and it can be used with other transport device, to accomplish combined transport, separate transport, mixing, blending dehydration, compounding, discharging and stacking, etc. the product is suitable to loose cement transport from cement warehouse to mixer or form cement warehouse to compounding machine at concrete batching plant.



•  The main parts (speed redactor, vane, middle shaft, gimbals and chrysanthemum sleeve, etc) of LSY series screw conveyer that produced that produced by our company are imported from Italy Sicoma Company.

■ Technical Data

Model LSY160 LSY200 LSY250 LSY300
Diameter of screw(mm) 160 193 250 300
Transport length(m) 2.5-6 4.5-12 6-9 6-9
Rotational speed of screw(r/min) 100 209 209 174
Diameter of housing(mm) Φ194 Φ219 Φ273 Φ325
Operation angle ≤20° ≤45° ≤45° ≤45°
Transport ability(t/h) 25 35 50 75
Motor model Y100L-4 Y132M-4 Y160M-4 Y180M-4
Power of motor(kw) 3-7.5 4-11 7.5-11 11-18.5
