Concrete Batching Plant
commercial concrete mixing plant
  • commercial concrete mixing plant
  • commercial concrete plant

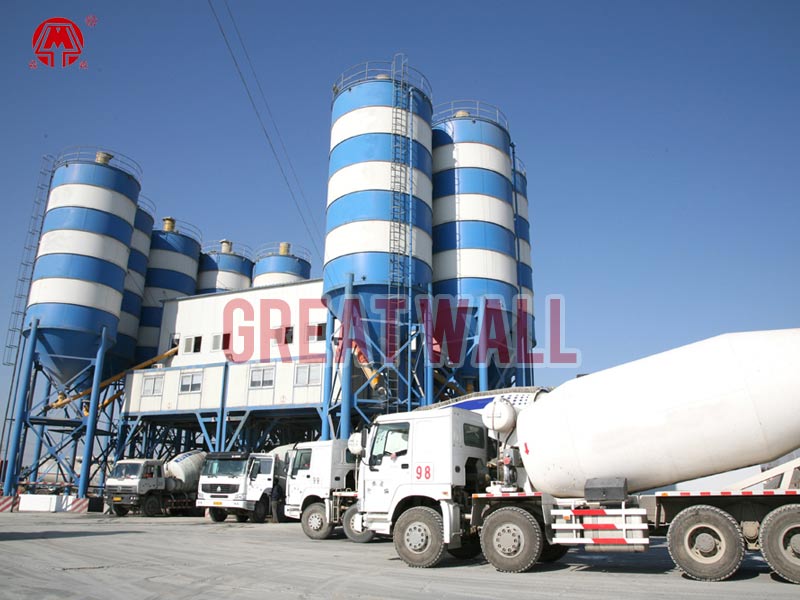

Commercial Concrete Batching Plant

  • Model: HZS commercial series
  • Productivity: 40—240m3/h
  • Mixer: JS series concrete mixer
  • Batching Machine: PLD series batching machine
  • Control System: Integration Industry Computer Control or PLC+PC Control System
  • Standard: GB/T 10171-2005
(※ Click this button to inquiry)
Share with :
  • Introduction
  • Overview
  • Technical Data
  • Inquiry
■ Overview

Introduction:

We, Zhengzhou Great Wall Machinery Manufacture Co., Ltd, our commercial concrete batching plant is special mixing equipment designed and manufactured for commercial concrete market, and with following features:
1) High Productivity, High Production Efficiency, Stable and Reliable, Long Life Span.
2) With Strong Mixing Control and Task Management System, Can Meets Customers’ Different Requirement on Concrete Ratio and Quality.
3) Aesthetics Designed, the Color and Painted Words can be Customerized Designed by the Buyer.
4) Modular Design for Easy Assembling, Maintenance and Remove In Future.
5) Low Noise and Dust for Your Environmental Protection Requirement Enough.



Part of Configurations Features:

Mixing System:
1) Our JS Series mixer is with 9 technical patents, it is with strong mixing power, high mixing evenness and high productivity.
2) It suits for mixing dry hard, half dry hard, plastic, and other ratios of concrete.
3) The mixing blade and liner is made by high wearing-resistance chromium-manganese alloy.
4) Both the lubrication system and main shaft driving system refer to Italian SICOMA technology. 5) The hydraulic discharging door angle is adjustable.
6) The shaft end sealing system is by multi-sealing structure effectively prevents leakage and guarantees the continuous long running of whole mixing system.
7) Motors and speed reducers are of China Famous Brand Product.



The Batching and Feeding System:

1) The PLD series batching machine is by pneumatic independent weighing system with high stability and efficiency.
2) The batching aggregates can be 3-5 types as per the unique needs of customers.
3) The sensors for the weighing system are of China Famous Brand with assured high weighing accuracy and stability.
4) The feeding system is of closed belt type, the belt is of china famous brand and the idler is troughed type, with belt tensioning system and cleaning system, guaranteeing the feeding efficiency and effectively longer the equipment lifespan.
5) The belt system is with maintenance aisle for the maintenance of the equipments.



Weighing System:

1) Apart the standard water, cement and additive weighing system, we can add ash coal and mineral powder weighing system as per requirement of Buyer for commercial concrete.
2) The sensors for the weighing system are of China Famous Brand with assured high weighing accuracy and stability.
3) The pneumatic butterfly valve is full aluminum for high performance and forever non-corrosion.



The Centralized Control System:

We use the international advanced control model of IPC (Industry Personal Computer) centralized control system, and has reached REAL computer integration control. Compared with normal PLC+PC control model,our centralized control system is with incomparable advantages on aspects of strong anti-interference ability, high reliability and stability, and highly increases the comprehensive efficiency of whole plant. We have real achieved zero failure rate and zero repair service needed after sales.



OUR TWO PROMISES:

1) We are the only CHINA WELL KNOWN TRADEMARK enterprise in Xingyang Henan, all our equipments is strictly designed and manufactured as per China National Standard Requirement, and high guaranteed on terms of advanced technology, deep technology maturity and promised output capacity.

2) We provide turn-key project solution with all needed equipment and parts (cables and wires are all included). We solemnly promise that, apart from the power and materials, the buyers needs no extra investment for any other parts to run our plant.

■ Technical Data

Detail Parameters Table:



  HZS60 HZS75 HZS90 HZS120 HZS180
Theory Productivity(m3/h) 60 75 90 120 180
Standard Discharging Height(m) 4.0 4.2 4.0 4.2 4.2
Mix Cycle Time(s) 60 60 60 60 60
Total Power(KW) 115 132 195 220 275
Mixer Model JS1000B JS1500A JS1500B JS2000 JS3000
Batching Machine Model PLD1600 pneumatic PLD2400 pneumatic PLD2400 pneumatic PLD3200 pneumatic PLD4800 pneumatic
Feeding Method Belt Hopper Belt Belt Belt
Weighing Accuracy Aggregate ≤2 ≤2 ≤2 ≤2 ≤2
Cement and Ash Coal ≤1 ≤1 ≤1 ≤1 ≤1
Water ≤1 ≤1 ≤1 ≤1 ≤1
Additive ≤1 ≤1 ≤1 ≤1 ≤1
MOQ 1 set 1 set 1 set 1 set 1 set
Delivery Time 14days 12days 15days 20days 20days
Delivery Port Qingdao or Tianjin
