JS Concrete Mixer
js1500 concrete mixer
  • js1500 concrete mixer
  • concrete mixer 1500

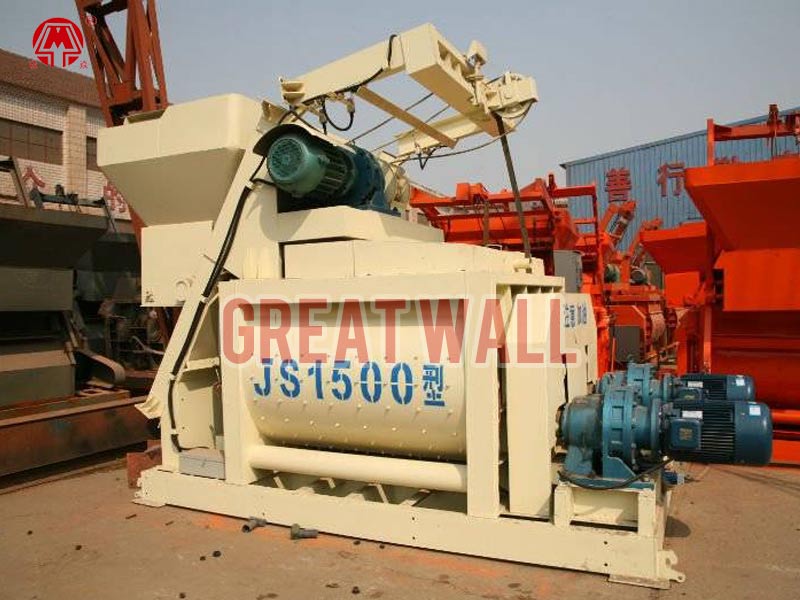

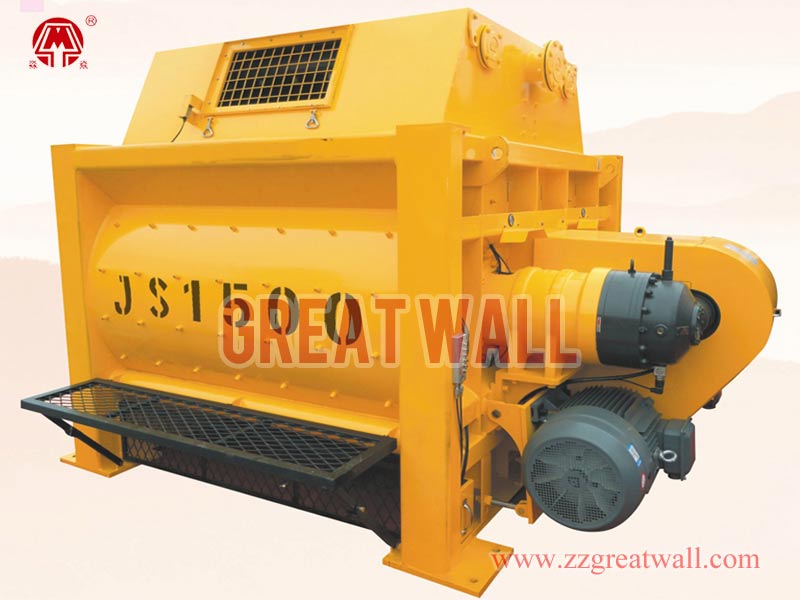

JS1500 Concrete Mixer

  • Capacity: 90m3/h
  • Discharging Capacity: 1500L
  • Drum Capacity: 2400L
  • Mixing Motor Power: 30kw×2sets
  • Winch Motor Power: 18.5kw
  • Standard: GB/T 9142--2000
(※ Click this button to inquiry)
Share with :
  • Introduction
  • Overview
  • Technical Data
  • Inquiry
■ Overview

Introduction:

JS1500 is twin shaft horizontal forced type mixer. It can mix dry hard concrete, plastic concrete, flowing concrete, light weight aggregate concrete and various mortar, it is a high-efficiency machine with wide application. It has dual superiorities of working solely or forming simple concrete mixing plant with PLD series batching machine, and can also mixer for concrete batching plant. It has JS1500A and JS1500B two models. JS1500A can be used alone or as main part of HZS75 plant . While JS1500B used as main part of HZS90 plant.



Technical details:

1) High mixing evenness, short mixing time, High Reliability with least Break Down, long life span for wearing parts, easy operation and maintenance.

2) Hydraulic discharge,the hydraulic discharging door angle is adjustable.

3) High Wear-Resistant Chromium-Manganese Alloys Plates and Blades.

 4) The shaft end sealing system is by multi-sealing structure effectively prevents leakage and guarantees the continuous long running of whole mixing system.

5) Automatically lubricating oil pump. The main shaft driving system refers to Italian SICOMA technology.

6) Double Motors and Speed Reducers Power:;Motor and speed reducer are of china famous brand. Full Copper Motors, Stable and Long Life.

7) National Standard Steel From China Famous Steel & Iron Companies.

 8) Discharge height 4.2m.

9) Excellent Performance with 11 Tech Patents.

 10) China Well-known Trademark, ISO SGS.



Usage:

It is mainly used as mixer body for concrete batching plant. It can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station,etc. They can also be used in precast concrete factories and commercial concrete plant.



OUR PROMISE:
We are the only CHINA WELL KNOWN TRADEMARK enterprise in Xingyang Henan, all our equipments is strictly designed and manufactured as per China National Standard Requirement, and high guaranteed on terms of advanced technology, deep technology maturity and promised output capacity.

■ Technical Data

Detail Parameters:



Model JS1500A JS1500B
Discharging capacity 1500L 1500L
Drum capacity 2400L 2400L
Productivity (m3 /h ) ≥90 ≥90
Max.aggregate size(Cobble/Crushed Stone)(mm) ≤60/80 ≤80/100
Operation Recycle Time(S) 60 60
Dimension Transport State (mm) 4720*2200*3000 3000*2400*2074
Dimension Work State (mm) 95530*3400*10800
Weight(kgs) 11130 6500
Mixing Blade Rotate Speed 23.5r/min 24.5r/min
Mixing Blade Number 2x8 2x8
Mixing Motor Model Y180L-4 Y225M-6
Mixing Motor Power 2*30kw 2*30kw
Winch Motor Model YEZ180L-4
Winch Motor Power 18.5kw
Water Pump Motor Model 80JDB-45
Water Pump Motor Power 3kw
MOQ 1 set 1 set
Delivery Time 10days 10days
Delivery Port Qingdao or Tianjin Qingdao or Tianjin
