Concrete Batching Plant
ready mixed concrete batching plant
  • ready mixed concrete batching plant
  • ready mixed concrete mixing plant
  • Ready Mix Concrete Plant

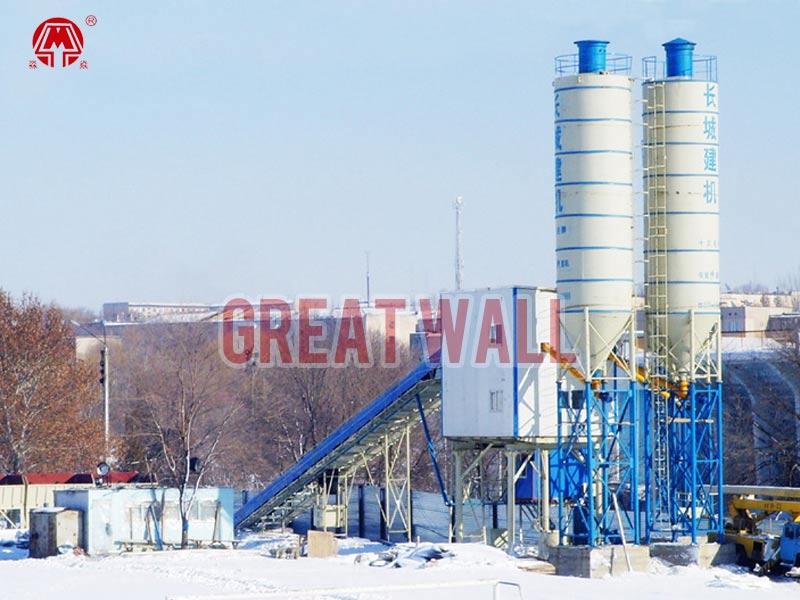

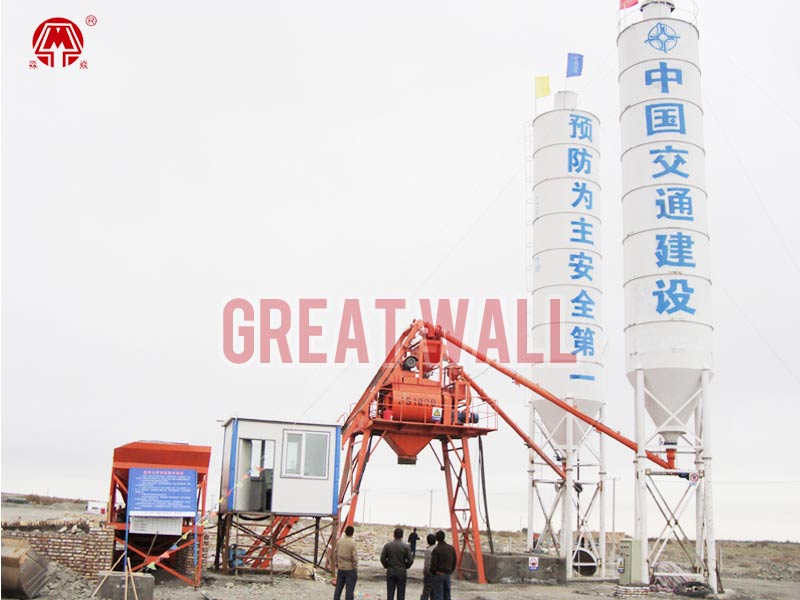

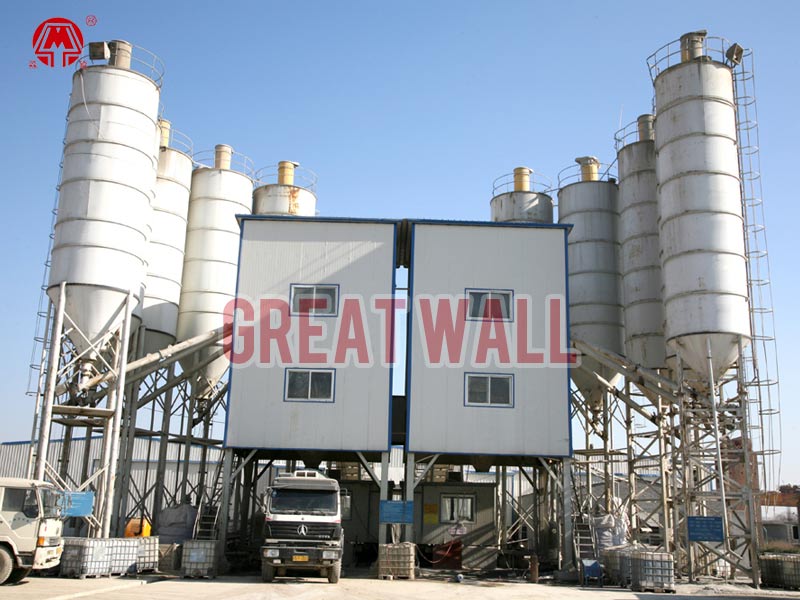

Ready Mix Concrete Plant

  • Model: HZS commercial series
  • Productivity: 15—240m3/h
  • Mixer: JS series concrete mixer
  • Batching Machine: PLD series batching machine
  • Control System: Integration Industry Computer Control or PLC+PC Control System
  • Standard: GB/T 10171-2005
(※ Click this button to inquiry)
Share with :
  • Introduction
  • Overview
  • Technical Data
  • Inquiry
■ Overview

Introduction:
We, Zhengzhou Great Wall Machinery Manufacture Co., Ltd, our ready mix concrete plant is special mixing equipment designed and manufactured for commercial concrete market and concrete projects, it is with high adaptability, vast application and following features:
1) High adaptability, it can produce commercial concrete, project concrete, precast concrete etc.
2) High mixing quality, high productivity, high production efficiency, stable and reliable, long life span.
3) Customerized design and available with various types of configurations according to Buyer’s production requirement and budget.
4) Modular design for easy remove, the connection between components is by bolts which are easy to assemble, maintain and remove in future.
5) Can layout the plant according to real geography details.
6) Aesthetics Designed, the Color and Painted Words can be Customerized Designed by the Buyer.

Part of Configurations Features:
Mixing System:
1) Our JS Series mixer is with 9 technical patents, it is with strong mixing power, high mixing evenness and high productivity.
2) It suits for mixing dry hard, half dry hard, plastic, and other ratios of concrete.
3) The mixing blade and liner is made by high wearing-resistance chromium-manganese alloy.
4) Both the lubrication system and main shaft driving system refer to international advanced technology.
5) The hydraulic discharging door angle is adjustable.
6) The shaft end sealing system is by multi-sealing structure effectively prevents leakage and guarantees the continuous long running of whole mixing system.
7) Motors and speed reducers are of China Famous Brand Product.

The Batching and Feeding System:
1) The PLD series batching machine is by pneumatic independent weighing system with high stability and efficiency.
2) The batching aggregates can be 2-5 types as per the unique needs of customers.
3) The sensors for the weighing system are of China Famous Brand with assured high weighing accuracy and stability.
4) The feeding system can be hopper type or closed belt type to meet customers’ requirement both on project cost and efficiency.

Weighing System:
1) Apart the standard water, cement and additive weighing system, we can add other weighing system as per requirement of Buyer.
2) The sensors for the weighing system are of China Famous Brand with assured high weighing accuracy and stability.
3) The pneumatic butterfly valve is full aluminum for high performance and forever non-corrosion.

The Centralized Control System:
We use the international advanced full auto control models of integration industry computer or full auto SIMENS PLC+PC model. For small project or the project that has comparatively fixed concrete formula, it can use PLC semi-auto control system or manual control system to hugely save cost.

Application Projects:
Concrete mixer plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, metro, government project, water projects, hydropower station, etc. They can also be used for producing precast concrete and used as commercial concrete batching plant.

OUR TWO PROMISES:
1) We are the only CHINA WELL KNOWN TRADEMARK enterprise in Xingyang Henan, all our equipments is strictly designed and manufactured as per China National Standard Requirement, and high guaranteed on terms of advanced technology, deep technology maturity and promised output capacity.
2) We provide turn-key project solution with all needed equipment and parts (cables and wires are all included). We solemnly promise that, apart from the power and materials, the buyers needs no extra investment for any other parts to run our plant.

■ Technical Data

Parameters Table:

  HZS25 HZS35 HZS50 HZS60 HZS75 HZS90 HZS120 HZS180
Theory Productivity(m3/h) 25 35 50 60 75 90 120 180
Standard Discharging Height(m) 3.8 3.8 4.2 4.0 4.2 4.0 4.2 4.2
Mix Cycle Time(s) 72 72 60 60 60 60 60 60
Total Power(KW) 52 75 105 115 132 195 220 275
Mixer Model JS500 JS750 JS1000A JS1000B JS1500A JS1500B JS2000 JS3000
Batching Machine Model PLD800 PLD1200 PLD1600A PLD1600 pneumatic PLD2400 pneumatic PLD2400 pneumatic PLD3200 pneumatic PLD4800 pneumatic
Feeding Method Hopper Hopper Hopper Belt Hopper Belt Belt Belt
Weighing Accuracy Aggregate ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2
Cement and Ash Coal ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1
Water ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1
Additive ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1 ≤1
MOQ 1 set 1 set 1 set 1 set 1 set 1 set 1 set 1 set
Delivery Time 7days 7days 10days 14days 12days 15days 20days 20days
Delivery Port Qingdao or Tianjin
