JS Concrete Mixer
concrete mixer 2m3
  • concrete mixer 2m3

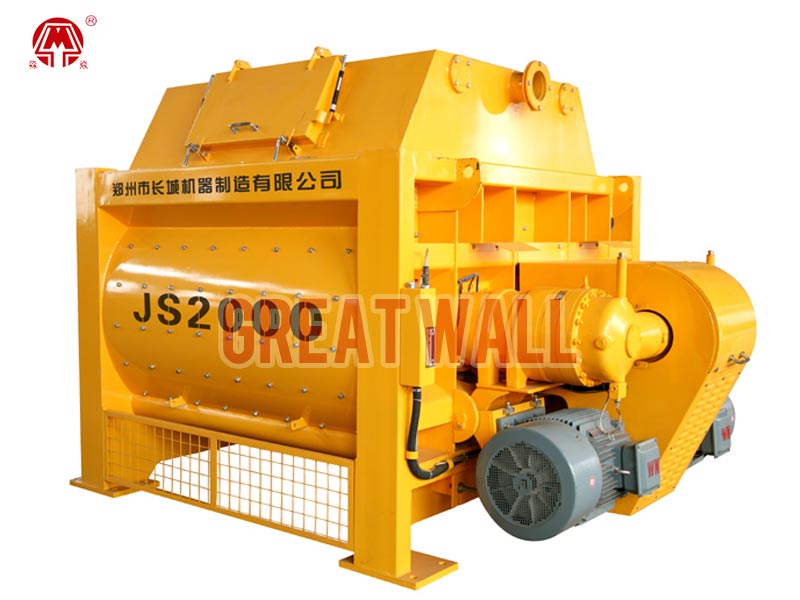

JS2000 Concrete Mixer

  • Capacity: 120m3/h
  • Discharging Capacity: 2000L
  • Drum Capacity: 3000L
  • Max.aggregate size (mm): ≤80/100
  • Mixing Motor Power: 37kw×2sets
  • Standard: GB/T 9142--2000
(※ Click this button to inquiry)
Share with :
  • Introduction
  • Overview
  • Technical Data
  • Inquiry
■ Overview

Introduction:

JS2000 is twin shaft horizontal forced type mixer. It can mix dry hard concrete, plastic concrete, flowing concrete, light weight aggregate concrete and various mortar, it is a high-efficiency machine with wide application. JS2000 is mainly used as mixer body for HZS120 concrete batching plant.


 Technical details

:1) High mixing evenness, short mixing time, High Reliability with least Break Down, long life span for wearing parts, easy operation and maintenance.

2) Hydraulic discharge,the hydraulic discharging door angle is adjustable.

3) High Wear-Resistant Chromium-Manganese Alloys Plates and Blades.

4) Automatically lubricating oil pump. The main shaft driving system refers to Italian SICOMA technology.

5) The shaft end sealing system is by multi-sealing structure effectively prevents leakage and guarantees the continuous long running of whole mixing system.

6) Motor and speed reducer are of china famous brand. Stable and Long Life.

7) National Standard Steel From China Famous Steel & Iron Companies.

8) Discharge height 4.2m.

9) Excellent Performance with 11 Tech Patents.

10) China Well-known Trademark, ISO SGS.

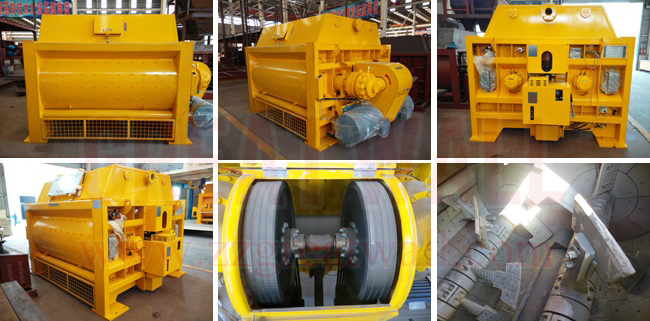

 JS2000 Concrete Mixer Details:

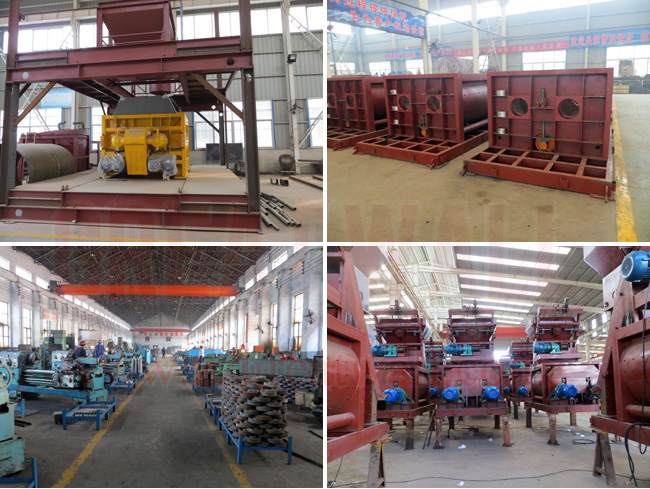

Our JS Series Concrete Mixer Workshop:

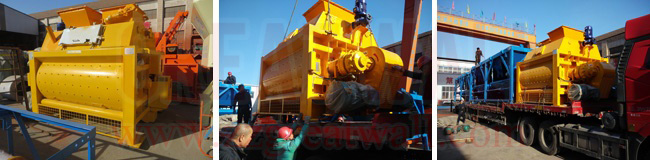

The Delievry of JS2000 Concrete Mixer:


■ Technical Data

Detail Parameters:



Model JS2000
Discharging capacity 2000L
Drum capacity 3200L
Productivity (m3 /h ) ≥120
Max.aggregate size(Cobble/Crushed Stone)(mm) ≤80/100
Operation Recycle Time(S) 60
Dimension Transport State (mm) 3500*2400*2152
Weight(kgs) 7500
Mixing Blade Rotate Speed 24.5r/min
Mixing Blade Number 2x8
Mixing Motor Model Y250M-6
Mixing Motor Power 2*37kw
MOQ 1 set
Delivery Time 12days
Delivery Port Qingdao or Tianjin
