HZS90 Concrete Batching Plant Built in Kazakhstan

May 17,2014

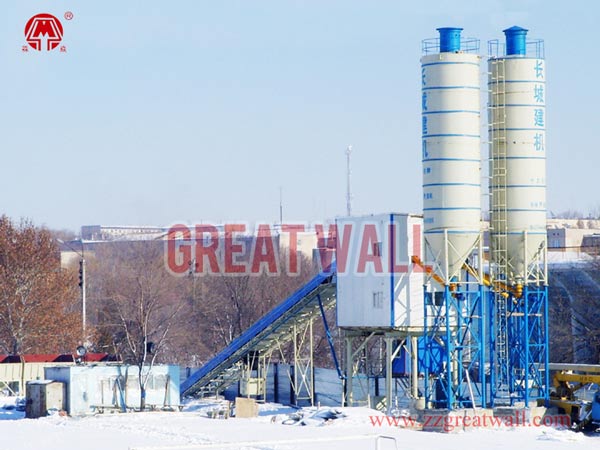

HZS90 Concrete Batching Plant Built in Kazakhstan


Features of production line:

1.high efficiency and output capacity
2.widely used

3.can produce various concrete


Model of entire plant HZS90
Maximum productivity m3/h 90
Standard discharging height (m) 3.8
Operation cycle time (s) 60
Appearance size (length*width*height) (mm) 58555×12376×18704
Total installed capacity (KW) 145
Model of mixer JS1500
Model of compounding machine PLD2400
Model of air compressor 1.8-7
Rated exhaust quantity (m3/min) 1.67
Rated exhaust pressure (MPa) 0.8
Electric motor power (KW) 11
Stand and stone measure precision(KG) ±2%
Cement measure precision (KG) ±1%
Water measure precision (KG) ±1%
Additives measure precision (KG) ±2%
